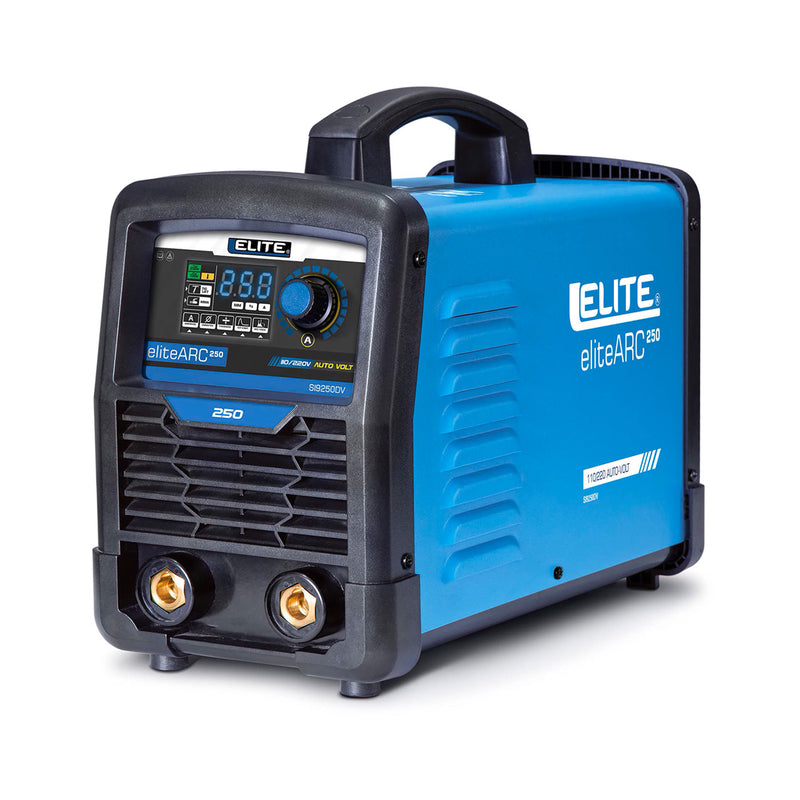

Elite® Welder ARC 250 SI9250DV

Elite Arc 250

The Elite ARC 250 welding equipment for professional use has a power of 250 amps and a connection of 110 / 220 volts. Able to develop MMA and TIG welding processes. Includes: ground clamp assembly, electrode holder clamp assembly.

Features

• Input voltage: 110 / 220 V (+/-10%).

• Frequency: 50/60Hz.

• No-load voltage: 80V

• IP: 21S

• Amperage: 10 - 250 amps.

• Duty cycle at 40°: 60%

• Recommended minimum fuse: 25Amps.

• Output current: DC.

• Insulation: I.CL.H

• Welding processes: MMA, TIG.

• Welds electrodes type: 7018, 6011 and 6013, 6010 – 1/8 at 100% and 5/32 at 100%

• Warranty: 2 years with support in Fixer Centers.

Benefits

• It has a control panel that contains visualization of functions such as current input, welding process, electrode diameter adjustment, material thickness adjustment, among others.

• Trained to carry out MMA and TIG welding processes.

• It has integrated welding technologies for better jobs: AUTO VOLT, ANTI STICK, HOT START.

Accessories Included

• Ground clamp assembly.
• Electrode holder clamp assembly.
