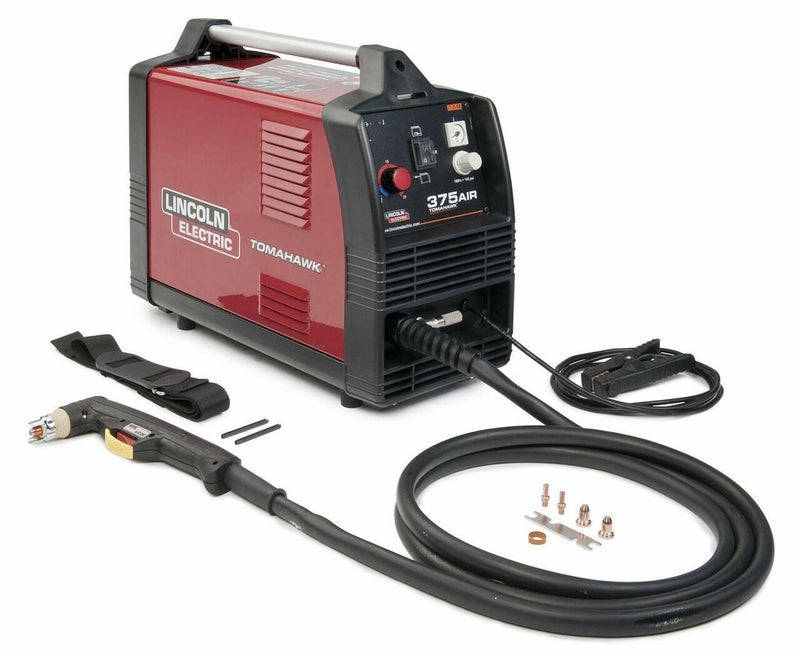

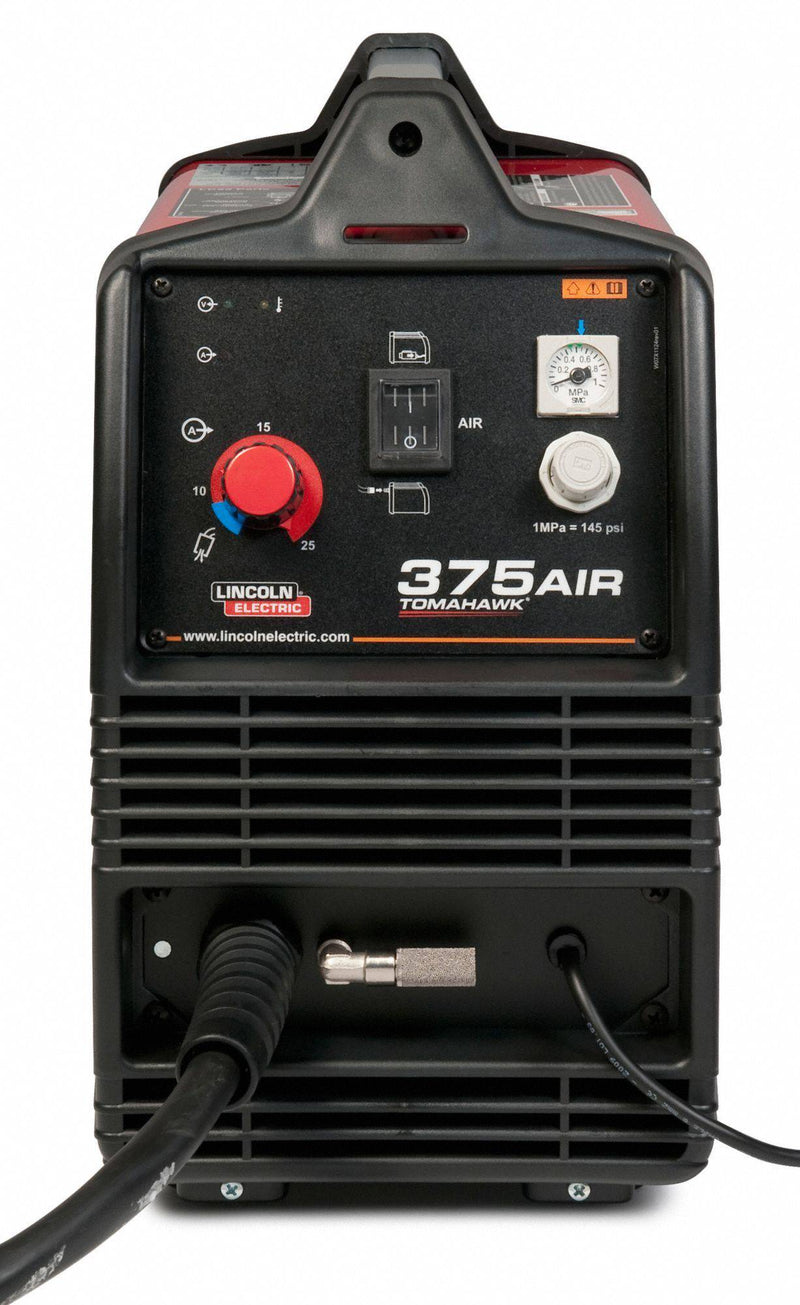

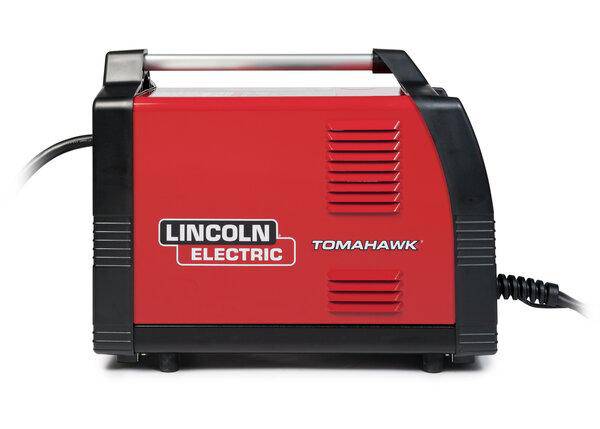

Tomahawk® 375 Air
Tomahawk® 375 Air
Tomahawk® 375 Air
360 view
Tomahawk® 375 Air
Tomahawk® 375 Air
Tomahawk® 375 Air
Tomahawk® 375 Air

Tomahawk® 375 Air

Handheld Plasma Cutter 21.7 Amps

219.11.K2806-1

$2,200.00

  • STORE PICKUP
  • DELIVERY
  • SHIPPING
In Stock
heart
The Tomahawk 375 AIR plasma cutter cuts mild and stainless steel precisely and can be used with either external or internal compressor.



Plasma Cutting - Anywhere, Anytime



The Tomahawk® 375 Air plasma cutting system arrives ready to go for fast and precise cutting. With the 375 Air, forget the grinder – pick up the torch and cut in seconds.



Features



  • Ultimate Portability – Internal air compressor enables operation in environments where external compressed air is not available.



  • Continuous Output Control – Focus the arc for different material thickness.\



  • Touch Start System – Reliable plasma arc initiation without high frequency.



  • Rapid Arc Restrike – Fast cutting through gaps, even expanded metal.



  • Front Panel Purge Control – Makes it easy to set the airflow rate without initiating the plasma arc.



  • Cool Operation, Long Consumable Life - New electrode and nozzle design save you money in the long run.



  • Added Safety – Our Parts-in-Place system detects the correct installation of consumables and torch.



  • Engine Drive Compatible – Select a Lincoln Electric Ranger® or Vantage® to power your Tomahawk® in remote locations



Included


  • Internal air compressor (external air connection also standard)



  • LC25 hand torch and 10 ft. (3 m) cable with electrode | nozzle 25A | swirl ring | retaining cap | drag spacer



  • Air regulator and pressure gauge



  • Internal water separator



  • Work clamp and cable



  • Spare consumables include (2) electrodes | (2) nozzles 25A | (1) swirl ring



  • Shoulder strap



  • Input power cord





Application

  • Construction
  • Automotive
  • General Fabrication
Item
Plasma Cutter with Built-In Air Compressor
Cutting Configuration
Plasma Cutting
Effective Input Current
21.7 Amps @ 208/230 V (Single-Phase)
For Material Type
Aluminum, Brass, Copper, Mild Steel, Stainless Steel
For Maximum Material Thickness
1/2 in
For Minimum Material Thickness
5/16 in
Input Frequency
60 Hz
Input Voltage
208 V AC, 230 V AC
Max. Input Current 21.7 Amps @ 208/230 V (Single-Phase)
Open Circuit Voltage
460 V DC
Phase
Single-Phase
Plasma Cutter Model
K2806-1
Maximum Output Current
25 Amps
Plasma Cutting Minimum Output Current
10 Amps
Plasma Cutting Output @ Duty Cycle
13 Amps @ 85.2 V, 100%, 18 Amps @ 87.2 V, 60%, 25 Amps @ 90 V, 35%
Welding Processes
Plasma Cutting
Color
Red
Cutting Cable Length
10 ft
Features
Continuous Output Control, Engine Drive Compatible, Front Panel Purge Control, Touch Start System
Required Air Flow
2.1 cfm
Ground Cord Length
10 ft
Includes
Consumables Kit, LC25 Hand Torch with 10 ft Cable, Work Clamp, Cable
Maximum Pressure - Air Compressor
80 psi
Overall Depth
18.9 in
Overall Height
15.2 in
Overall Width
8.5 in
Plasma Gas Type
Air
Plasma Torch Type
Handheld
Plug Type
6-50P
Series
Tomahawk 375 Air
Standards
CSA, ISO
Weight
18.14 kg

The Tomahawk 375 AIR plasma cutter cuts mild and stainless steel precisely and can be used with either external or internal compressor.



Plasma Cutting - Anywhere, Anytime



The Tomahawk® 375 Air plasma cutting system arrives ready to go for fast and precise cutting. With the 375 Air, forget the grinder – pick up the torch and cut in seconds.



Features



  • Ultimate Portability – Internal air compressor enables operation in environments where external compressed air is not available.



  • Continuous Output Control – Focus the arc for different material thickness.\



  • Touch Start System – Reliable plasma arc initiation without high frequency.



  • Rapid Arc Restrike – Fast cutting through gaps, even expanded metal.



  • Front Panel Purge Control – Makes it easy to set the airflow rate without initiating the plasma arc.



  • Cool Operation, Long Consumable Life - New electrode and nozzle design save you money in the long run.



  • Added Safety – Our Parts-in-Place system detects the correct installation of consumables and torch.



  • Engine Drive Compatible – Select a Lincoln Electric Ranger® or Vantage® to power your Tomahawk® in remote locations



Included


  • Internal air compressor (external air connection also standard)



  • LC25 hand torch and 10 ft. (3 m) cable with electrode | nozzle 25A | swirl ring | retaining cap | drag spacer



  • Air regulator and pressure gauge



  • Internal water separator



  • Work clamp and cable



  • Spare consumables include (2) electrodes | (2) nozzles 25A | (1) swirl ring



  • Shoulder strap



  • Input power cord





Application

  • Construction
  • Automotive
  • General Fabrication

Item
Plasma Cutter with Built-In Air Compressor
Cutting Configuration
Plasma Cutting
Effective Input Current
21.7 Amps @ 208/230 V (Single-Phase)
For Material Type
Aluminum, Brass, Copper, Mild Steel, Stainless Steel
For Maximum Material Thickness
1/2 in
For Minimum Material Thickness
5/16 in
Input Frequency
60 Hz
Input Voltage
208 V AC, 230 V AC
Max. Input Current 21.7 Amps @ 208/230 V (Single-Phase)
Open Circuit Voltage
460 V DC
Phase
Single-Phase
Plasma Cutter Model
K2806-1
Maximum Output Current
25 Amps
Plasma Cutting Minimum Output Current
10 Amps
Plasma Cutting Output @ Duty Cycle
13 Amps @ 85.2 V, 100%, 18 Amps @ 87.2 V, 60%, 25 Amps @ 90 V, 35%
Welding Processes
Plasma Cutting
Color
Red
Cutting Cable Length
10 ft
Features
Continuous Output Control, Engine Drive Compatible, Front Panel Purge Control, Touch Start System
Required Air Flow
2.1 cfm
Ground Cord Length
10 ft
Includes
Consumables Kit, LC25 Hand Torch with 10 ft Cable, Work Clamp, Cable
Maximum Pressure - Air Compressor
80 psi
Overall Depth
18.9 in
Overall Height
15.2 in
Overall Width
8.5 in
Plasma Gas Type
Air
Plasma Torch Type
Handheld
Plug Type
6-50P
Series
Tomahawk 375 Air
Standards
CSA, ISO
Weight
18.14 kg
