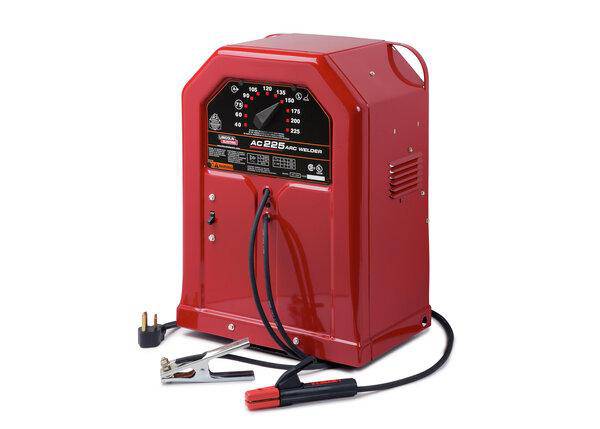

AC225™ Stick Welder
The Lincoln Electric AC-225 Compact AC Arc Welder produces an extremely smooth AC arc for welding a wide variety of materials including carbon, low alloy and stainless steels as well as cast iron. Ideal for home, farm, shop, repair and maintenance, build-up welding and light fabrication. Easy to install with attached input power cable and NEMA 6-50P plug, plus it's easy to operate: a full range 40–225 Amp selector switch quickly sets the welding current and ensures a uniform arc each and every time you weld. Smooth arc makes it easy to weld with different electrodes, including mild steel, low hydrogen, stainless steel and hardfacing electrodes.
Features
- Easy to install - Comes with attached 6 ft. (1.8m) input power cable and NEMA 6-50P plug.

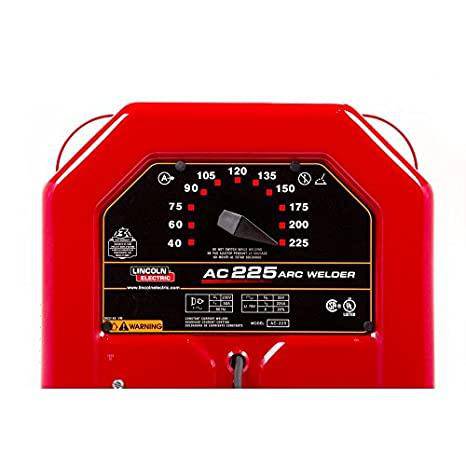

- Easy to operate - Full range 40-225 amp selector switch quickly sets the welding current and ensures a uniform arc each and every time You weld.
- Smooth arc - Makes it easy to weld with different electrodes, including mild steel, low hydrogen, stainless steel and hardfacing electrodes.
- 225 amp AC output - Is enough for 3/16"" (4.8mm) diameter general purpose mild steel electrodes and 5/32"" (4.0mm) sizes of other electrodes.
- NEMA rated, UL listed and ULCSA approved.
APPLICATIONS
- Home / Farm / Shop
- Repair and Maintenance
- Build-up Welding
- Light Fabrication
INCLUDED
- Insulated electrode holder and cable
- Heavy duty work clamp and cable
- Input cable with attached plug (K1170 only)
| Item | Stick Welder |
| For Material Type | Mild Steel, Stainless Steel |
| Input Frequency | 50/60 Hz |
| Input Voltage | 230V AC |
| Phase | Single-Phase |
| Polarity | AC |
| Model | K1170 |
| Stick Welding Maximum Output Current | 225 Amps |
| TIG Welding Maximum Output Current | 225 Amps |
| Stick Welding Output @ Duty Cycle | 225 Amps @ 25V, 20% |
| TIG Welding Output @ Duty Cycle | 225 Amps @ 25 V, 20% |
| Stick Welding Minimum Output Current | 40 Amps |
| Welding Processes | Air Carbon Arc Cutting, Gouging (CAC-A), Stick Welding (SMAW), TIG Welding (GTAW) |
| Welding Mode | CC |
| Application | Build Up Welding, Farm, For Home, Light Fabrication, Repair and Maintenance, Shop |
| Color | Red |
| Effective Input Current | 50 Amps (Single-Phase) |
| Includes | Heavy Duty Work Clamp and Cable, Insulated Electrode Holder and Cable |
| Open Circuit Voltage | 79 V AC |
| Overall Depth | 12 in |
| Overall Height | 24 in |
| Overall Width | 17.25 in |
| Plug Type | 6-50P |
| Power Cord Included | Yes |
| Series | AC225 |
| Weight | 109 lb |
