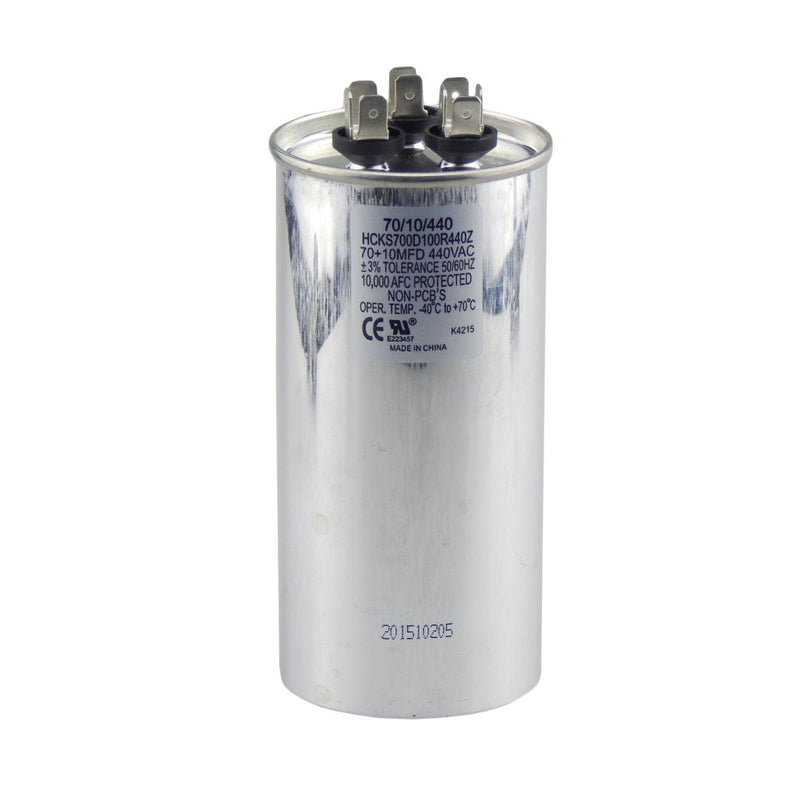

Round Dual Capacitor

 ROUND DUAL CAPACITOR 70+10X440

Dual run capacitors are commonly used in HVAC (heating, ventilation, and air conditioning) units. Dual capacitors have three terminals, unlike regular run capacitor, which have only two. Electrically, they are the same as run capacitors that have two terminals. Using a dual run capacitor allows you to save space if you have a small mounting area. The terminals are also clearly marked, making it easy to hook it up to the different components of your air conditioner. Usually have connections marked "C" for "common," "H" or "HERM" for the hermetic compressor, and "F" or "FAN" for the fan in an HVAC unit. They also have two different capacitance ratings (for example, 35/5 uf). The larger value is always connected to the compressor (35 uf in the example), while the smaller value will always be connected to the fan (in this case, 5 uf).

Features

• Capacitors without PCB, in individual box.

• Quick disconnect terminals (standard)

• Approved by UL and CSA.

• 50/60 Hz Operating Frequency, -40 to +158.0°F Operating Temperature

• Replaces / Supersedes: GE / GENTEQ C37010 C37010R C47010 C47010R Mars SUPCO CD70+10X370R CD70+10X440R and other 70/10, 70+10, 70+10 capacitors with matching specifications.
